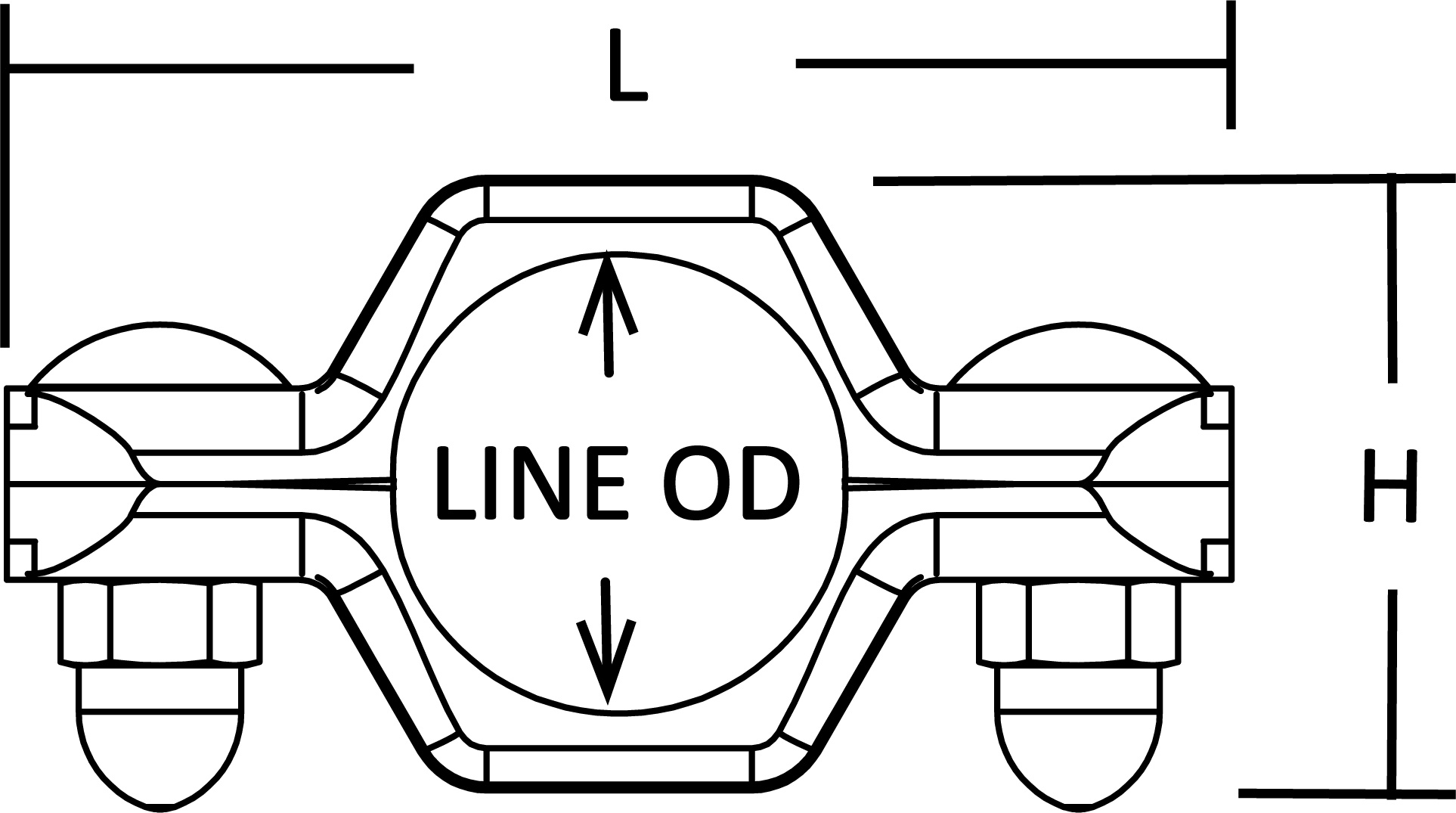

PHHW Front
PHHW Weld Mount Connection
PHHW Top View
Applications: Cleanrooms and mechanical areas, including but not limited to the biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries
Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes: Support Range: 1/4” – 6” Tube and 1/2” – 6” Pipe
Features: ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines, creating maintenance uptime
Materials: 304 and 316 stainless steels
ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications: Intermittent temperatures from -40F to 320F
Continues temperatures from -20F to 302F – Contact Syntiro with continuous application’s environmental details
Benefits: Drainable and Cleanable
There are no exposed threads or openings in hardware plates
Carriage bolts lock into Hardware Frame;s square hole allowing installer to use a single wrench
The antiquated Entrapping Hex Hanger requires two wrenches, increasing safety concerns and installation time
Carriage bolts are reversible, so rounded drainable surface is always on the hangers topside
Hanger threads match MSS 69 rod OD requirements
Silicone inserts are resistant to high and low temperatures
| Tube Size | Line OD | H | L | W | CL | Part Number w/Acorn Nut | Part Number w/Lock Nut | Download STEP File |
| 1/2" | 0.50 | 1.15 | 2.80 | 1.10 | 0.58 | PHHW0.50T304SAN | PHHW0.50T304SLN |  |
| 3/4" | 0.75 | 1.15 | 2.80 | 1.10 | 0.58 | PHHW0.75T304SAN | PHHW0.75T304SLN | |
| 1" | 1.00 | 1.45 | 3.00 | 1.10 | 0.73 | PHHW1.0T304SAN | PHHW1.0T304SLN | |
| 1 1/2" | 1.50 | 1.96 | 4.00 | 1.42 | 0.98 | PHHW1.5T304SAN | PHHW1.5T304SLN | |
| 1 1/2" | 1.50 | 2.16 | 4.00 | 1.42 | 1.08 | PHHWH1.5T304SAN ** | PHHWH1.5T304SLN ** | |
| 2" | 2.00 | 2.50 | 4.60 | 1.42 | 1.25 | PHHW2.0T304SAN | PHHW2.0T304SLN | |
| 2" | 2.00 | 2.70 | 4.60 | 1.42 | 1.35 | PHHWH2.0T304SAN ** | PHHWH2.0T304SLN ** | |
| 2 1/2" | 2.50 | 4.00 | 5.10 | 1.42 | 4.00 | PHHW2.5T304SAN | PHHW2.5T304SLN | |
| 3" | 3.00 | 3.50 | 5.60 | 1.42 | 1.75 | PHHW3.0T304SAN | PHHW3.0T304SLN | |
| 4" | 4.00 | 4.55 | 6.75 | 1.42 | 2.28 | PHHW4.0T304SAN | PHHW4.0T304SLN | |
| 6" | 6.00 | 6.29 | 9.25 | 1.42 | 3.15 | PHHW6.0T304SAN | PHHW6.0T304SLN |
| Pipe Size | Line OD | H | L | W | CL | Part Number w/Acorn Nut | Part Number w/Lock Nut | Download STEP File |
| 1/2" | 0.840 | 1.45 | 3.00 | 1.10 | 0.73 | PHHW0.50P304SAN | PHHW0.50P304SLN | |
| 3/4" | 1.050 | 1.45 | 3.00 | 1.10 | 0.73 | PHHW0.75P304SAN | PHHW0.75P304SLN | |
| 1" | 1.315 | 1.96 | 4.00 | 1.42 | 0.98 | PHHW1.0P304SAN | PHHW1.0P304SLN | |
| 1" | 1.315 | 2.16 | 4.00 | 1.42 | 1.08 | PHHWH1.0P304SAN ** | PHHWH1.0P304SLN ** | |
| 1 1/2" | 1.900 | 2.50 | 4.60 | 1.42 | 1.25 | PHHW1.5P304SAN | PHHW1.5P304SLN | |
| 1 1/2" | 1.900 | 2.70 | 4.60 | 1.42 | 1.35 | PHHWH1.5P304SAN ** | PHHWH1.5P304SLN ** | |
| 2" | 2.375 | 3.00 | 5.10 | 1.42 | 1.50 | PHHW2.0P304SAN | PHHW2.0P304SLN | |
| 2 1/2" | 2.875 | 3.50 | 5.60 | 1.42 | 1.75 | PHHW2.5P304SAN | PHHW2.5P304SLN | |
| 3" | 3.500 | 4.13 | 6.33 | 1.42 | 2.06 | PHHW3.0P304SAN | PHHW3.0P304SLN | |
| 4" | 4.500 | 5.12 | 7.52 | 1.42 | 2.65 | PHHW4.0P304SAN | PHHW4.0P304SLN | |
| 6" | 6.625 | 7.20 | 9.25 | 1.74 | 3.31 | PHHW6.0P304SAN | PHHW6.0P304SLN |
