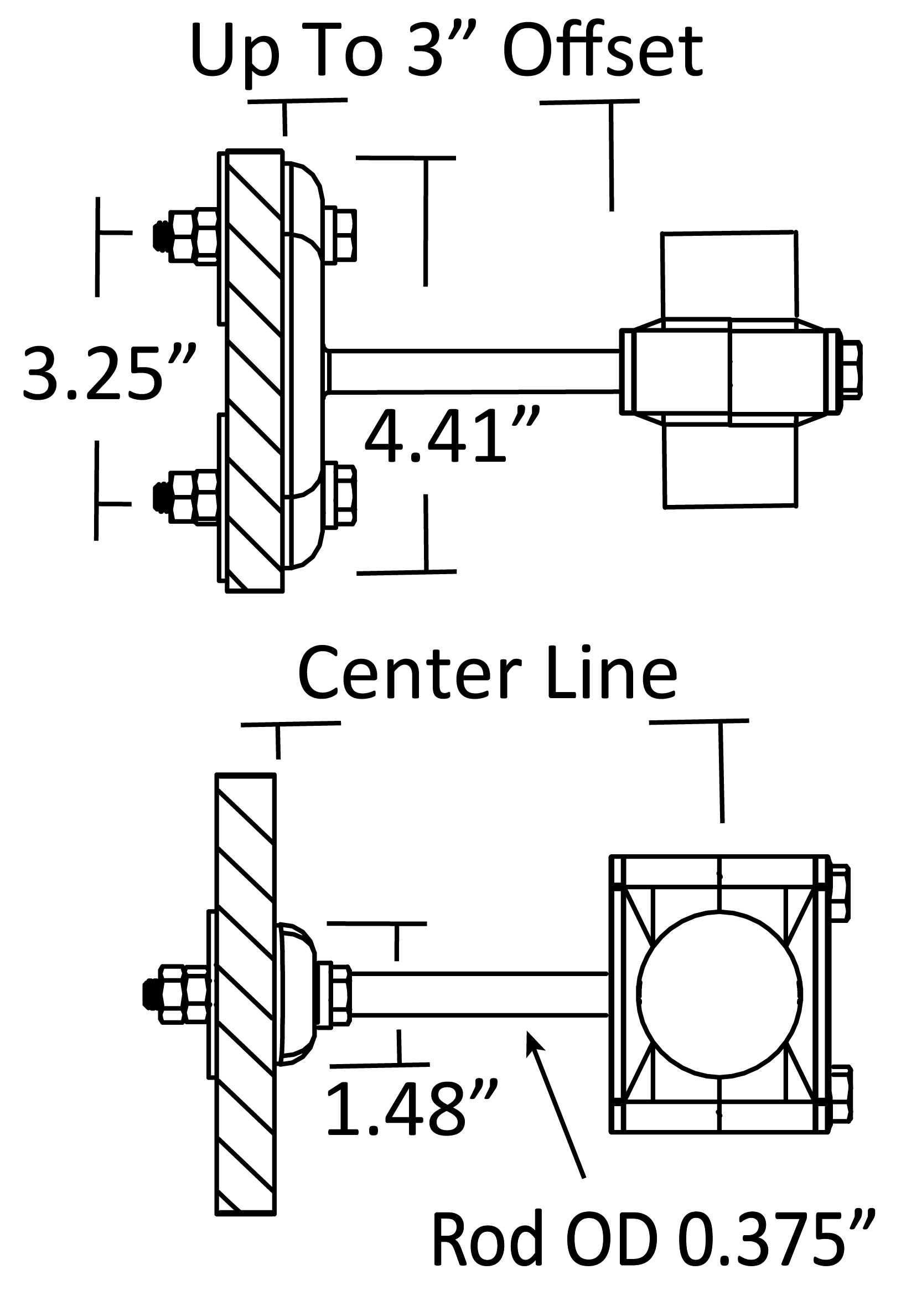

ZCUP Front View
Zero Caulk Universal Plate

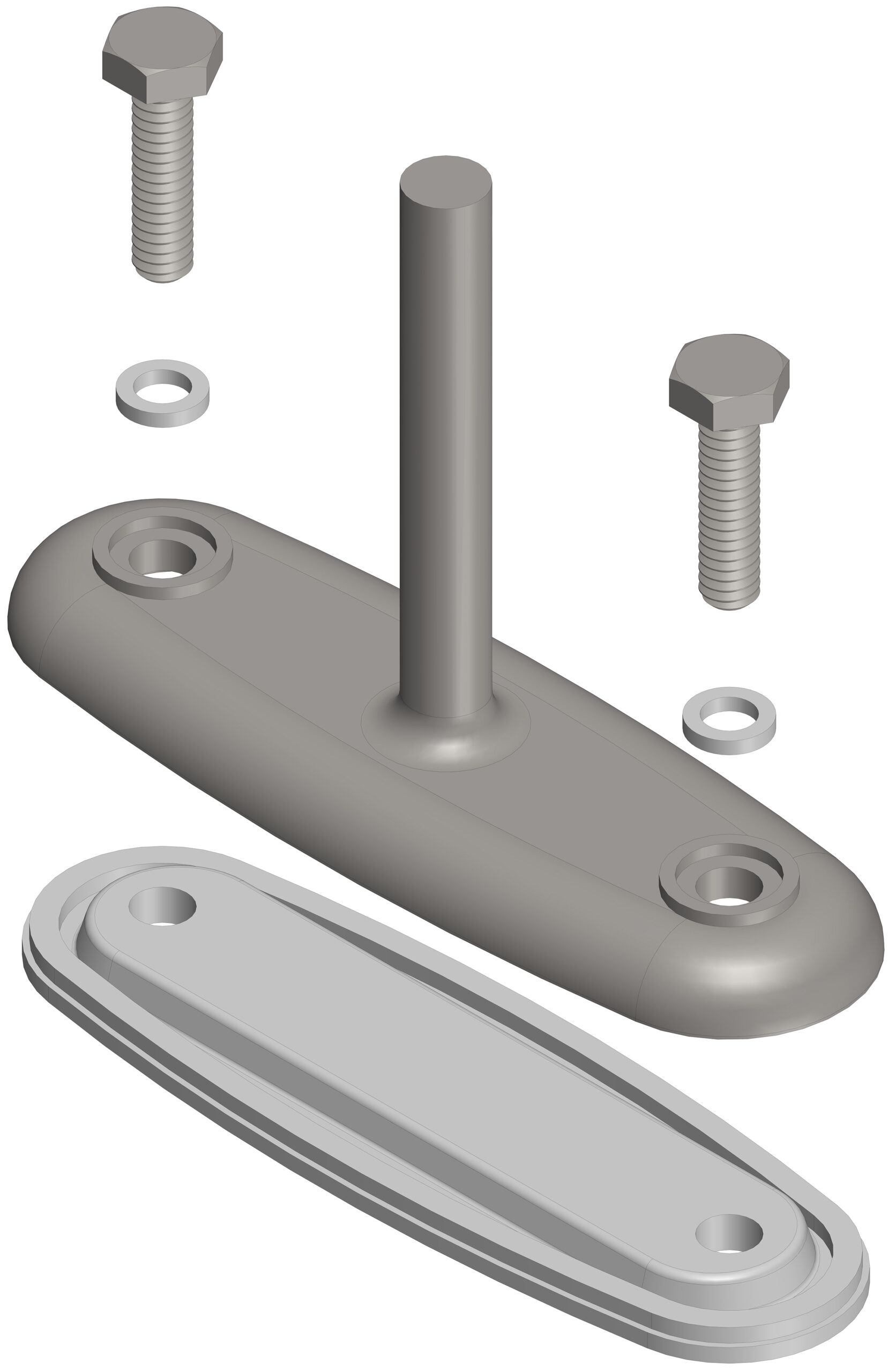

ZCUP - Silicone rubber plugs fill the interior as it creates a watertight seal to the mounting surface
Mounting: Blindside – Insulated Metal Panels IMP’s, Square Tubes, Framing… use Jack Nut/rivet nut
Openside – Gypsum Board, Beams, Plates, Cement… use backside backing plate with lock nuts
Applications: Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semi-conductor industries.
Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:Support Range: 1/4” – 2” Tube and 1/2” – 1 1/2” Pipe for Copper and PVC Coated Pipe as well as EMT Conduit contact Syntiro
Tight fit Anchors and loose fit Guides are offered
Features: NEW – Silver ion additive is blended in the FDA grade Silicone Rubber Gaskets, impeding bacterial, mold, and fungus from forming on the gasket
Silicone Rubber Gasket creates a drainable and cleanable seal to surface
Silicone Rubber Gasket eliminates the use of caulk. Caulk will breakdown/crack creating voids
Jack Nut’s tensile strengths are over 820 pounds
ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
There are no exposed threads or openings
Materials:304 and 316 stainless steels
Graphics:A FEW MINUTES PROCESS
A. Stock and actuated Rivet Nut
1. Drill 7/16” hole into IMP
2. Rivet nut placed in hole
3. Rivet nut actuated and secured to IMP via $30
MARSON, M39043 MJN-2 JACK NUT INSERT TOOL
| Tube Size | Line OD | Center Line (1.5" to 3.5") | Hanger Housing Type | Part Number | Part Number (guide/loose fit are available in the CSDW Sereis) | STEP File | CSDW Files | PHHW FILES |
| 1/4" | 0.38 | ?.?? | "(P) When the Tube Runs Perpendicular/Criss Cross to the ZCUP’s Mounting Boltd or (H) When the Tube Runs Horizontal/In Line to the ZCUP’s Mounting Bolts" | ZCUPC0.25T304SA-CL?.??-P or H | ZCUPC0.25T304SG-CL?.??-P or H |  | | NA |
| 3/8" | 0.38 | ?.?? | ZCUPC0.38T304SA-CL?.??-P or H | ZCUPC0.38T304SG-CL?.??-P or H | | NA | ||
| 1/2" | 0.50 | ?.?? | ZCUPC0.50T304SA-CL?.??-P or H | ZCUPC0.50T304SG-CL?.??-P or H | | | ||
| 3/4" | 0.75 | ?.?? | ZCUPC0.75T304SA-CL?.??-P or H | ZCUPC0.75T304SG-CL?.??-P or H | | | ||
| 1" | 1.00 | ?.?? | ZCUPC1.0T304SA-CL?.??-P or H | ZCUPC1.0T304SG-CL?.??-P or H | | | ||
| 1 1/2" | 1.50 | ?.?? | ZCUPC1.5T304SA-CL?.??-P or H | ZCUPC1.5T304SG-CL?.??-P or H | | | ||
| 2" | 2.00 | ?.?? | ZCUPC2.0T304SA-CL?.??-P or H | ZCUPC2.0T304SG-CL?.??-P or H | | | ||
| 2 1/2" | 2.50 | ?.?? | ZCUPC2.5T304SA-CL?.??-P or H | ZCUPC2.5T304SG-CL?.??-P or H | ||||
| 3" | 3.00 | ?.?? | ZCUPC3.0T304SA-CL?.??-P or H | ZCUPC2.0T304SG-CL?.??-P or H |
| Pipe Size | Line OD | Center Line (1.5" to 3.5") | Hanger Housing Type | Part Number(anchor/tight fit) | Part Number (guide/loose fit are available in the CSDW Sereis) | STEP File | CSDW Files | PHHW Files |
| 1/2" | 0.840 | ?.?? | "(P) When the Tube Runs Perpendicular/Criss Cross to the ZCUP’s Mounting Boltd or (H) When the Tube Runs Horizontal/In Line to the ZCUP’s Mounting Bolts" | ZCUPC0.50T304SA-CL?.??-P or H | ZCUPC0.50T304SG-CL?.??-P or H | | | |
| 3/4" | 1.050 | ?.?? | ZCUPC0.75T304SA-CL?.??-P or H | ZCUPC0.75T304SG-CL?.??-P or H | | | ||
| 1" | 1.315 | ?.?? | ZCUPC1.0T304SA-CL?.??-P or H | ZCUPC1.0T304SG-CL?.??-P or H | | | ||
| 1.25" | 1.660 | ?.?? | ZCUPC1.25T304SA-CL?.??-P or H | ZCUPC1.25T304SG-CL?.??-P or H | | | ||
| 1 1/2" | 1.900 | ?.?? | ZCUPC1.5T304SA-CL?.??-P or H | ZCUPC1.5T304SG-CL?.??-P or H | | | ||
| 2" | 2.375 | ?.?? | ZCUPC1.5T304SA-CL?.??-P or H | ZCUPC1.5T304SG-CL?.??-P or H | ||||
| 2 1/2" | 2.875 | ?.?? | ZCUPC1.5T304SA-CL?.??-P or H | ZCUPC1.5T304SG-CL?.??-P or H |
| Tube Size | Line OD | Center Line (1.5" to 3.5") | Hanger Housing Type | Part Number(anchor/tight fit) | Part Number (guide/loose fit are available in the CSDW Sereis) | STEP File | CSDW Files | PHHW Files |
| 1/2" | 0.50 | ?.?? | "(P) When the Tube Runs Perpendicular/Criss Cross to the ZCUP’s Mounting Boltd or (H) When the Tube Runs Horizontal/In Line to the ZCUP’s Mounting Bolts" | ZCUPP0.50T304SA-CL?.??-P or H | NA | | | |
| 3/4" | 0.75 | ?.?? | ZCUPP0.75T304SA-CL?.??-P or H | NA | | | ||
| 1" | 1.00 | ?.?? | ZCUPP1.0T304SA-CL?.??-P or H | NA | | | ||
| 1 1/2" | 1.50 | ?.?? | ZCUPP1.5T304SA-CL?.??-P or H | NA | | | ||
| 2" | 2.00 | ?.?? | ZCUPP2.0T304SA-CL?.??-P or H | NA | | | ||
| 2 1/2" | 2.50 | ?.?? | ZCUPP.0T304SA-CL?.??-P or H | NA | ||||
| 3" | 3.00 | ?.?? | ZCUPP2.0T304SA-CL?.??-P or H | NA |
| Pipe Size | Line OD | Center Line (1.5" to 3.5") | Housing Position | Part Number(anchor/tight fit) | Part Number (guide/loose fit are available in the CSDW Sereis) | STEP File | CSDW Files | PHHW Files |
| 1/2" | 0.840 | ?.?? | (P) When the Tube Runs Perpendicular/Criss Cross to the ZCUP’s Mounting Boltd or (H) When the Tube Runs Horizontal/In Line to the ZCUP’s Mounting Bolts | ZCUPP0.50P304SA-CL?.??-P or H | NA | | | |
| 3/4" | 1.050 | ?.?? | ZCUPP0.75P304SA-CL?.??-P or H | NA | | | ||
| 1" | 1.315 | ?.?? | ZCUPP1.0P304SA-CL?.??-P or H | NA | | | ||
| 1 1/2" | 1.900 | ?.?? | ZCUPP1.5P304SA-CL?.??-P or H | NA | | | ||
| 2" | 2.375 | ?.?? | ZCUPP2.0P304SA-CL?.??-P or H | NA | | | ||
| 2 1/2" | 2.875 | ?.?? | ZCUPP2.5P304SA-CL?.??-P or H | NA |
