Mounting: Blindside – Insulated Metal Panels IMP’s, Square Tubes, Framing… use Jack Nut/rivet nut

Openside – Gypsum Board, Beams, Plates, Cement… use backside backing plate with lock nuts

Applications: Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semi-conductor industries.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines

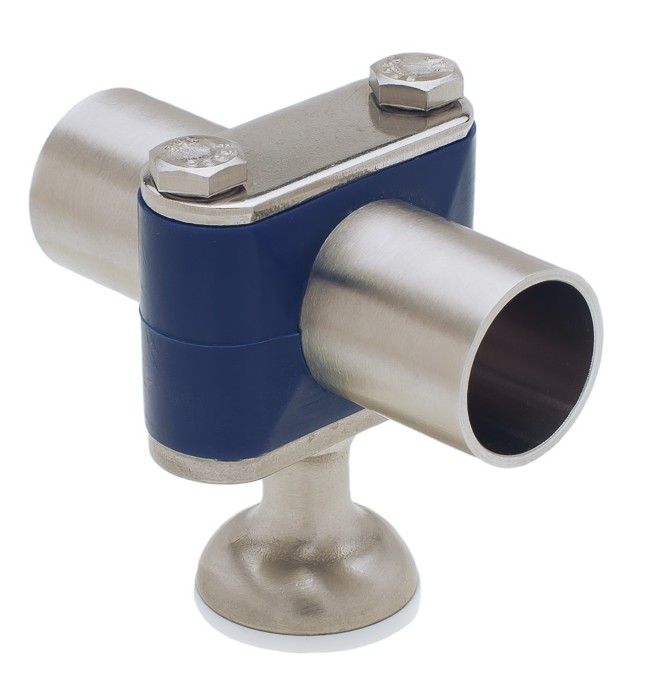

Sizes: Support Range: 1/4” – 2” Tube and 1/2” – 1 1/2” Pipe for Copper and PVC Coated Pipe and EMT Conduit contact Syntiro

Tight fit Anchors and loose fit Guides are offered

Features:  NEW – Silver ion additive is blended in the FDA grade Silicone Rubber Gaskets, impeding bacterial, mold, fungus from forming on the gasket

Silicone Rubber Gasket creates a drainable and cleanable seal to surface

Silicone Rubber Gasket eliminates the use of caulk.  Caulk will breakdown/crack creating voids

Jack Nut’s tensile strengths are over 820 pounds

ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime

There are no exposed threads or openings

Materials: 304 and 316 stainless steels

Graphics:A FEW MINUTES PROCESS

A. Stock and actuated Rivet Nut

1. Drill 7/16” hole into IMP

2. Rivet nut placed in hole

3. Rivet nut actuated and secured to IMP

MARSON, M39043 MJN-2 JACK NUT INSERT TOOL
